| Part number: | SDWL1608CPR33GSTF |
| Description: | FIXED IND 330NH 180MA 3.6OHM SMD |
| Manufacturer | Sunlord (Shenzhen Sunlord Electronics) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sunlord (Shenzhen Sunlord Electronics)" |
| Tolerance | ±2% |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.067" L x 0.043" W (1.70mm x 1.10mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |

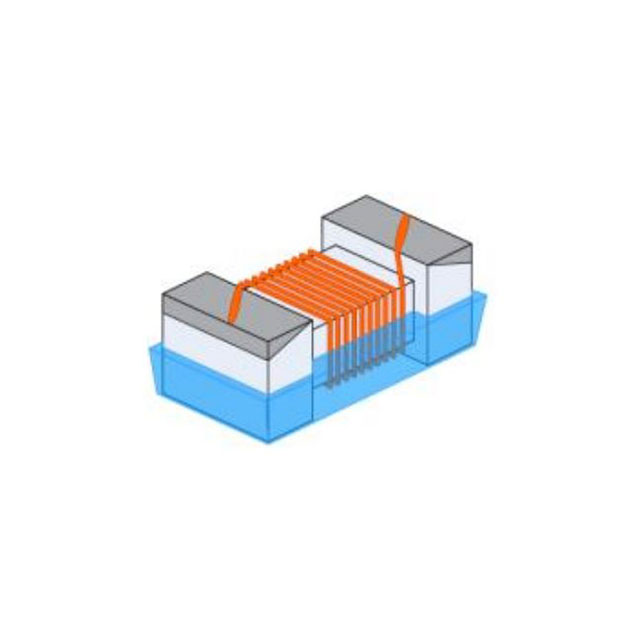

| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 3.6Ohm Max |
| Q @ Freq | 46 @ 250MHz |
| Frequency - Self Resonant | 930MHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Inductance | 330 nH |
| Current Rating (Amps) | 180 mA |
|
