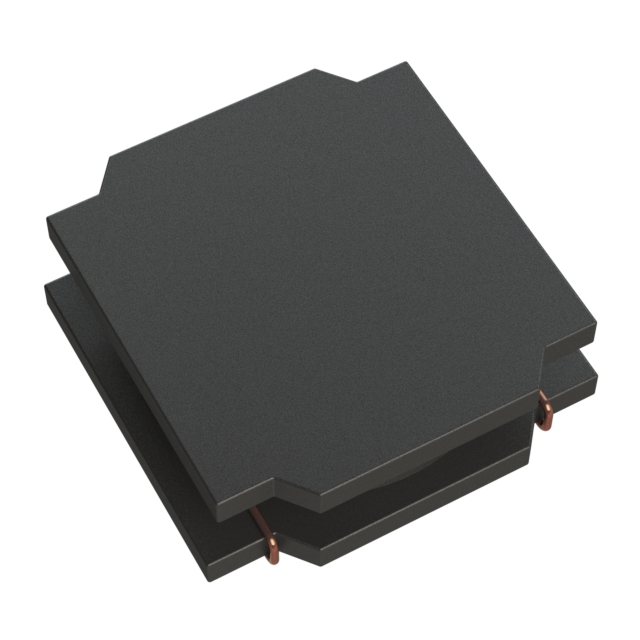

| Part number: | SWPA3015SR22NT |
| Description: | FIXED IND 220NH 3.25A 23MOHM SMD |
| Manufacturer | Sunlord (Shenzhen Sunlord Electronics) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sunlord (Shenzhen Sunlord Electronics)" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 23mOhm Max |
| Frequency - Self Resonant | 342MHz |
| Current - Saturation (Isat) | 5.5A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Inductance | 220 nH |
| Current Rating (Amps) | 3.25 A |
|
