| Part number: | RG-223-4 |

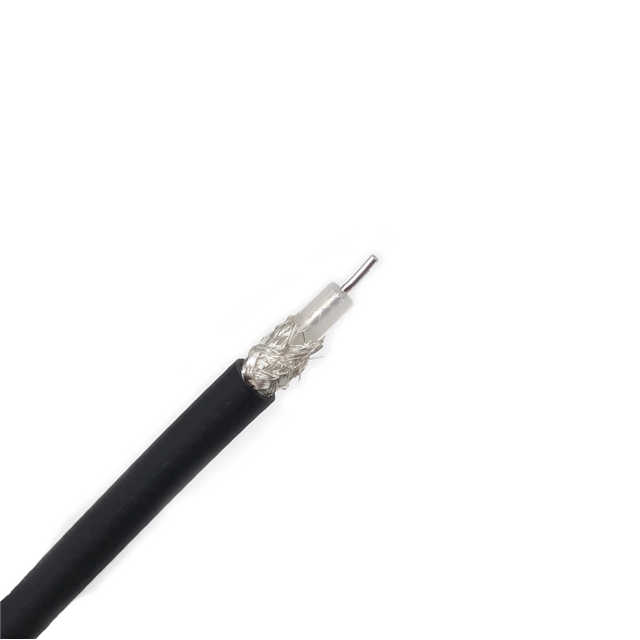

| Description: | CABLE COAXIAL RG223 19AWG 4' |
| Manufacturer | Remington Industries |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Remington Industries" |
| Features | Direct Burial |
| Length | 4.0' (1.22m) |
| Wire Gauge | 19 AWG |
| Jacket (Insulation) Material | Non Contaminating Poly-Vinyl Chloride (PVC) |
| Conductor Strand | Solid |
| Cable Group | RG-223 |
| Operating Temperature | -40°C ~ 90°C |
| Cable Type | Coaxial |
| Jacket (Insulation) Diameter | 0.212" (5.38mm) |
| Usage | Network, RF Signal |
| Dielectric Material | Polyethylene (PE) |
| Shield Coverage | 95% |
| Shield Material | Copper, Silver Coated |
| Shield Type | Double Braid |
| Conductor Material | Copper, Silver Coated |
| Jacket Color | Black |
| Dielectric Diameter | 0.116" (2.95mm) |
| VoP, Velocity of Propagation | 66 |
| Impedance | 50 Ohms |
|
