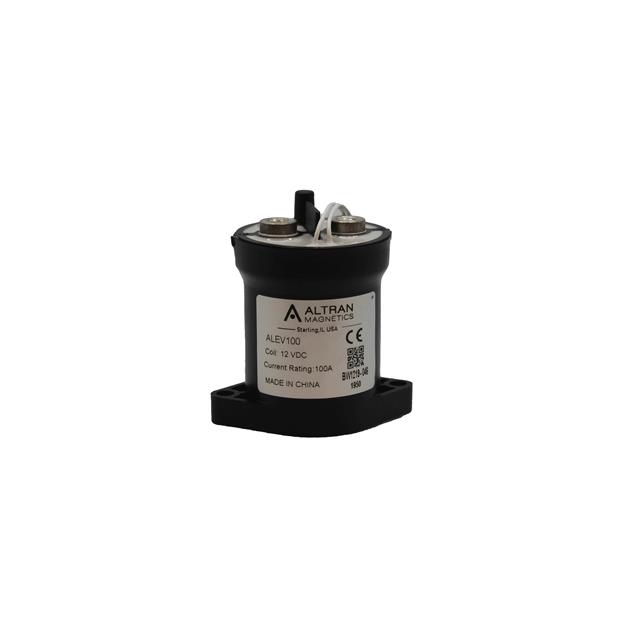

| Part number: | ALEV100-EAS |
| Description: | ALEV100 SERIES 100A DC CONTACTOR |
| Manufacturer | AMI (Altran Magnetics) |
| Encapsulation | Box |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "AMI (Altran Magnetics)" |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount |
| Coil Voltage | 48VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Stud, Wire Leads |
| Coil Current | 122 mA |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 100 A |
| Switching Voltage | 750VDC - Max |
| Must Release Voltage | 4.8 VDC |
| Must Operate Voltage | 33 VDC |
| Operate Time | 25 ms |
| Release Time | 10 ms |
| Coil Power | 6W |
| Coil Resistance | 392Ohms |
|
