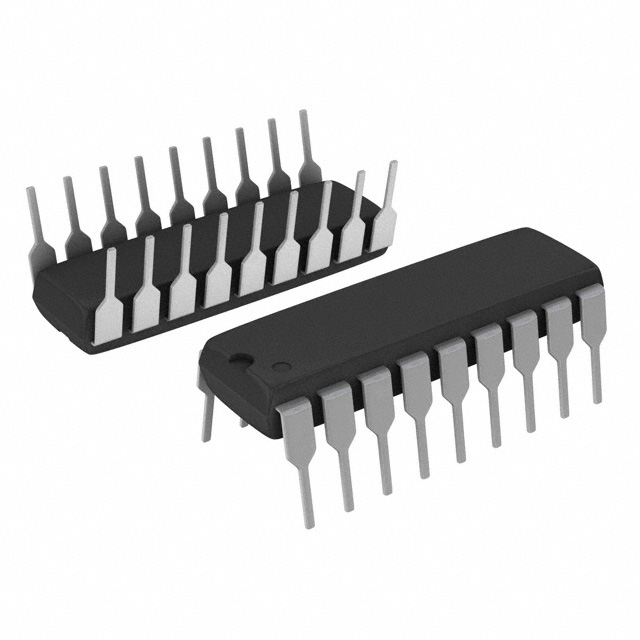

| Part number: | MAX389CPN |
| Description: | IC SWITCH SP4T X 2 3KOHM 18DIP |
| Manufacturer | Maxim Integrated / Analog Devices |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Maxim Integrated / Analog Devices" |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 3kOhm |
| Supplier Device Package | 18-PDIP |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Charge Injection | 55pC |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ΔRon) | 300Ohm |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Number of Circuits | 2 |
|
