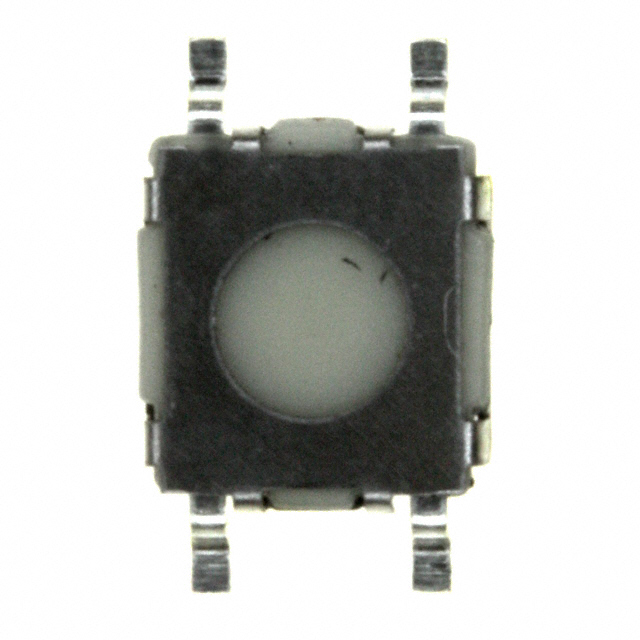

| Part number: | TL6700NF160QG |
| Description: | SWITCH TACTILE SPST-NO 0.05A 12V |
| Manufacturer | E-Switch |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "E-Switch" |
| Features | Process Sealed |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -20°C ~ 70°C |
| Termination Style | Gull Wing |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Flush |
| Operating Force | 160gf |
| Outline | 6.90mm x 6.20mm |
| Actuator Height off PCB, Vertical | 2.60mm |
| Actuator Orientation | Top Actuated |
|
