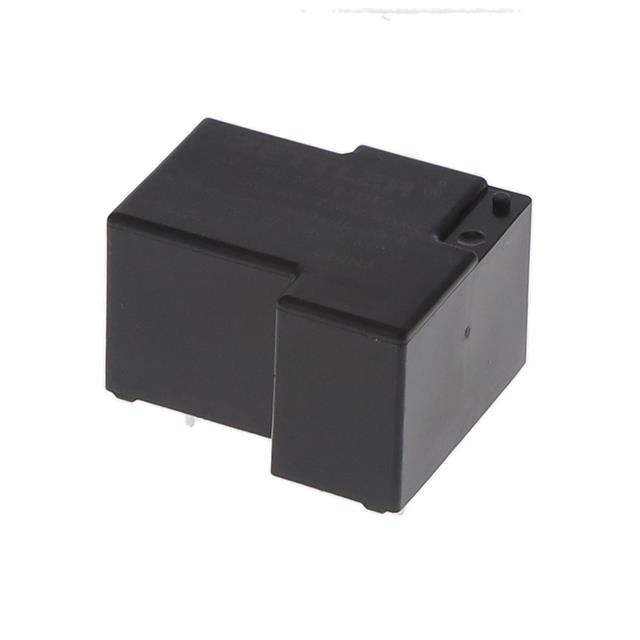

| Part number: | AZ2150-1CE-24DEF |
| Description: | RELAY GEN PURPOSE SPDT 40A 24V |
| Manufacturer | American Zettler |
| Encapsulation | Tray |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Zettler" |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -55°C ~ 105°C |
| Termination Style | PC Pin |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Coil Current | 36.4 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 300VAC, 30VDC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 12 ms |
| Release Time | 5 ms |
| Coil Insulation | Class F |
| Load - Max Switching | 12000VA, 1200W |
|
