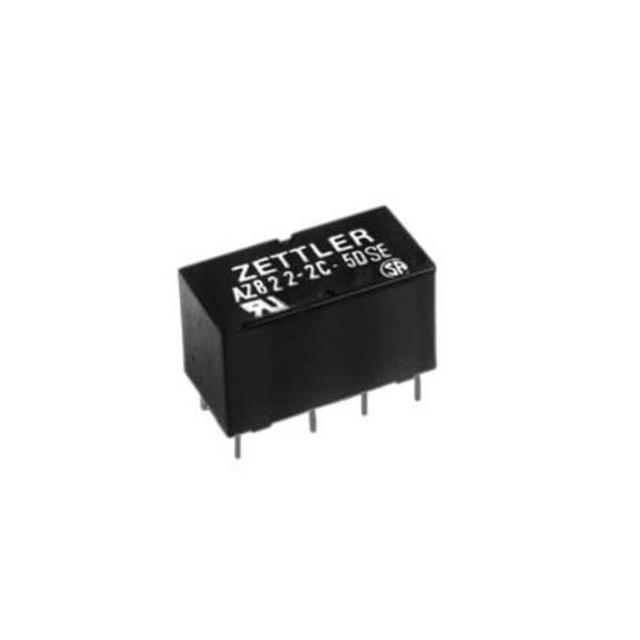

| Part number: | AZ822-2C-5DE |
| Description: | RELAY GENERAL PURPOSE DPDT 2A 5V |
| Manufacturer | American Zettler |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Zettler" |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Operating Temperature | -55°C ~ 90°C |
| Termination Style | PC Pin |
| Approval Agency | CUR, UL |
| Relay Type | General Purpose |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Must Release Voltage | 0.25 VDC |
| Must Operate Voltage | 3.5 VDC |
| Operate Time | 5 ms |
| Release Time | 2 ms |
| Load - Max Switching | 500VA, 440W |
|
