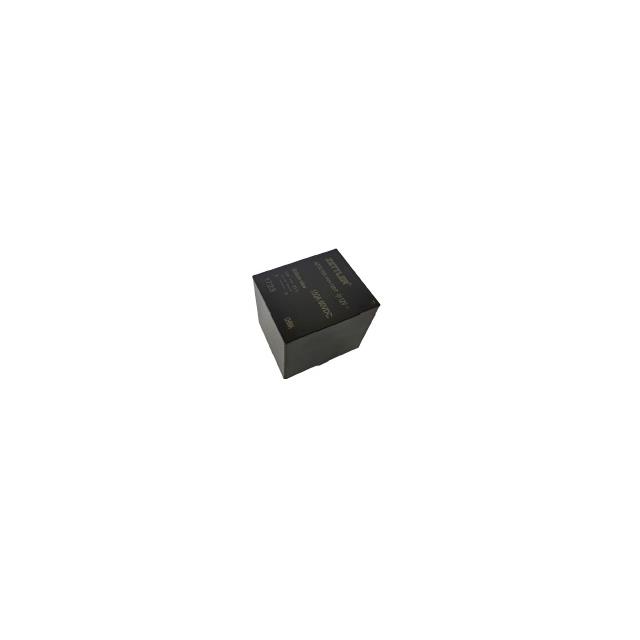

| Part number: | AZDC105-1AH-24DT |
| Description: | RELAY GEN PURPOSE SPST 150A 24V |
| Manufacturer | American Zettler |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Zettler" |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 65°C |
| Termination Style | PC Pin |
| Approval Agency | TUV, UL |
| Relay Type | General Purpose |
| Coil Current | 133.3 mA |
| Coil Type | Non Latching |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 150 A |
| Switching Voltage | 60VDC - Max |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Coil Resistance | 180 Ohms |
| Coil Insulation | Class F |
| Load - Max Switching | 9000W |
|
