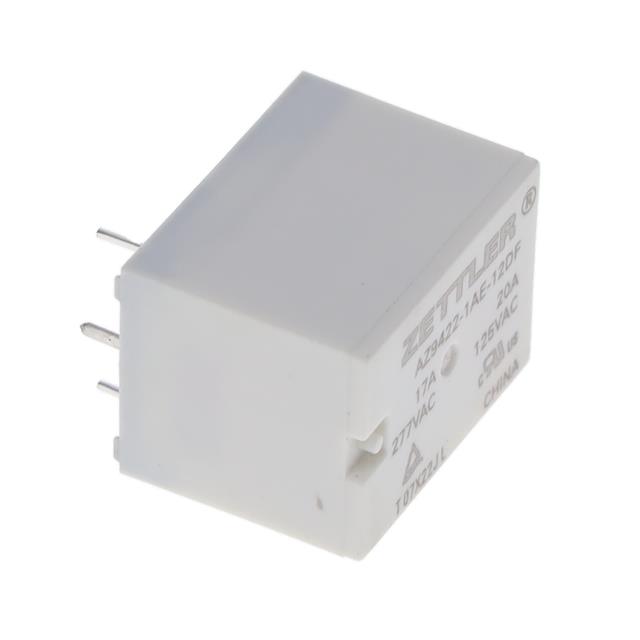

| Part number: | AZ9422-1AE-12DF |
| Description: | RELAY GEN PURPOSE SPST 20A 12V |
| Manufacturer | American Zettler |
| Encapsulation | Tray |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Zettler" |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, CUR, TUV, UL |
| Relay Type | General Purpose |
| Coil Current | 30 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 9 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Coil Resistance | 400 Ohms |
| Coil Insulation | Class F |
| Load - Max Switching | 4700VA, 480W |
|
