| Part number: | QJ8008NH4TP |
| Description: | TRIAC ALTERNISTOR 800V 8A TO263 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

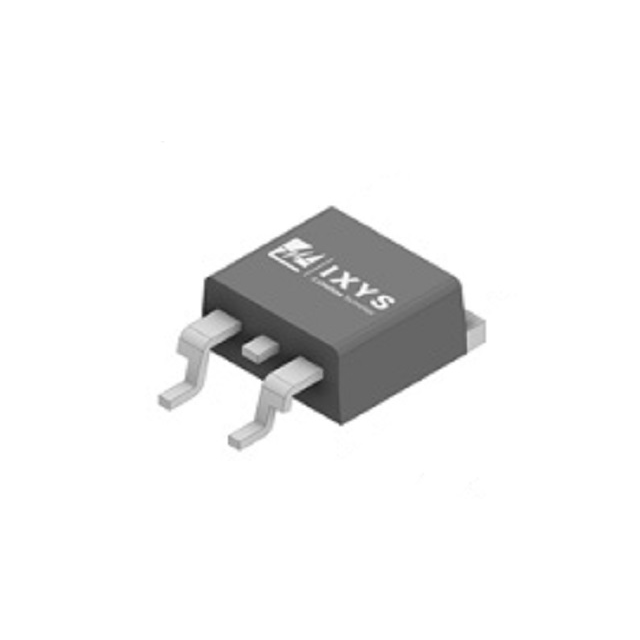

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 35 mA |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-263 (D2PAK) |
| Current - On State (It (RMS)) (Max) | 8 A |
| Voltage - Off State | 800 V |
|
