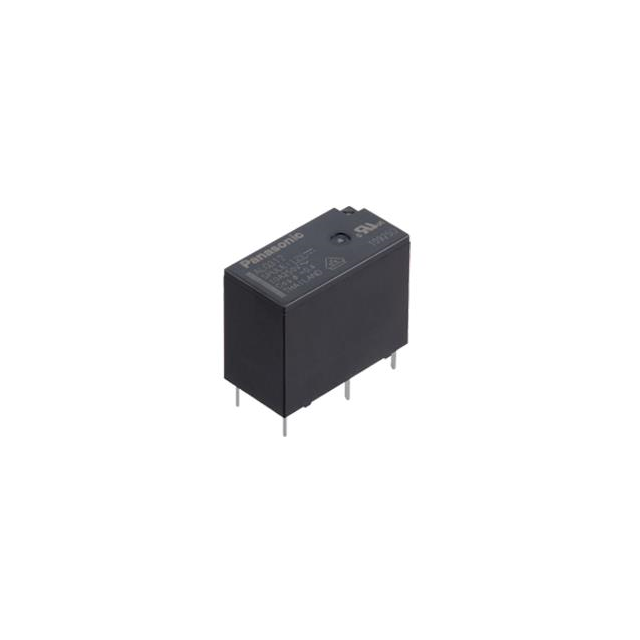

| Part number: | ALQ124S |
| Description: | RELAY GEN PURPOSE SPDT 10A 24V |
| Manufacturer | Panasonic Electric Works |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electric Works" |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, cURuus, VDE |
| Relay Type | General Purpose |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Coil Insulation | Class B |
| Load - Max Switching | 1250VA, 150W |
|
