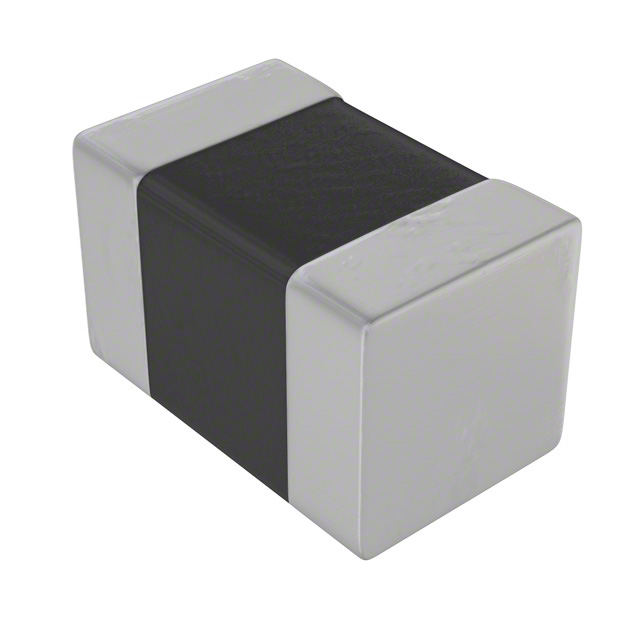

| Part number: | L0805220GEWTR\O |
| Description: | FIXED IND 22NH 500MA 400MOHM SMD |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±2% |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.11mm x 1.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Thin Film |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 400mOhm Max |
| Q @ Freq | 36 @ 450MHz |
| Frequency - Self Resonant | 1.4GHz |
| Material - Core | Non-Magnetic |
| Inductance Frequency - Test | 450 MHz |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.041" (1.04mm) |
| Inductance | 22 nH |
| Current Rating (Amps) | 500 mA |
|
