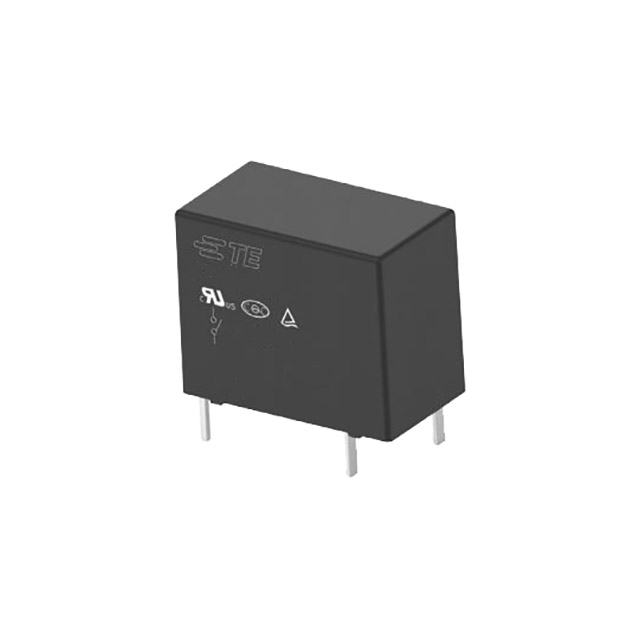

| Part number: | OJS-SS-112HMF, 00000 |
| Description: | RELAY GEN PURPOSE SPST 10A 12V |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity Potter & Brumfield Relays" |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CQC, cURus, TUV |
| Relay Type | General Purpose |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC - Max |
| Must Release Voltage | 0.6 VDC |
| Must Operate Voltage | 9 VDC |
| Operate Time | 15 ms |
| Release Time | 4 ms |
| Coil Resistance | 720 Ohms |
| Coil Insulation | Class F |
| Load - Max Switching | 2500VA |
|
