| Part number: | 1700/40 100SF |

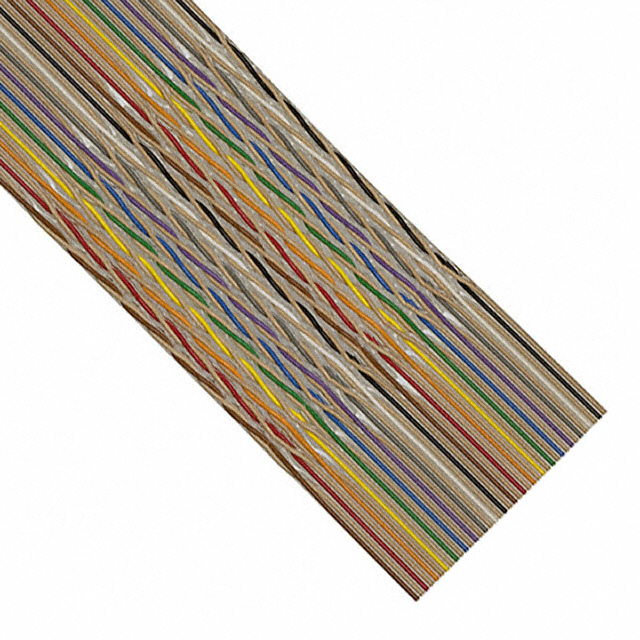

| Description: | CBL RIBN 40COND TWIST-PAIR |
| Manufacturer | 3M |
| Encapsulation | Spool |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Splice Free |
| Length | 100.0' (30.48m) |
| Wire Gauge | 28 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Conductor Strand | 7 Strands / 36 AWG |
| Pitch | 0.050" (1.27mm) |
| Operating Temperature | -20°C ~ 105°C |
| Number of Conductors | 40 (20 Pair Twisted) |
| Cable Type | Flat Twisted Pair |
| Ratings | UL Style 20462 |
| Conductor Material | Copper, Tinned |
| Jacket Color | Multiple |
| Insulation Resistance | 1GOhms |
| Ribbon Thickness | 0.080" (2.03mm) |
| Ribbon Width | 2.000" (50.80mm) |
| Voltage | 300 V |
|
