| Part number: | PNM-3546L-R |

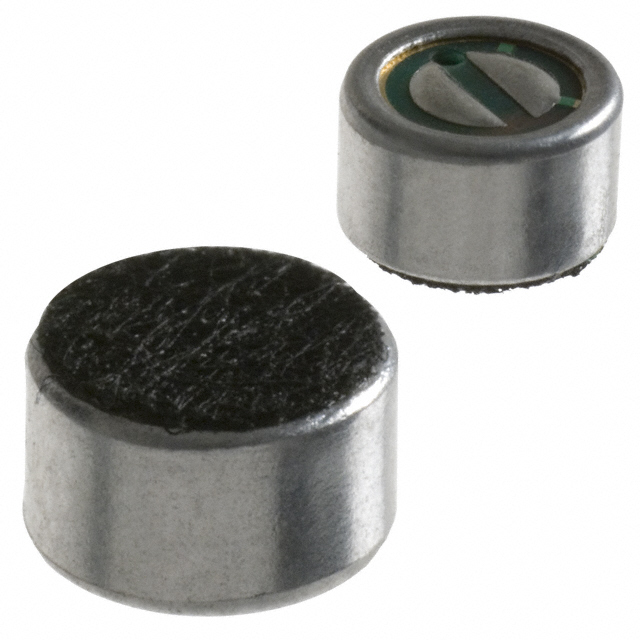

| Description: | MIC COND ANLG NC -46DB 0.236"DIA |
| Manufacturer | PUI Audio, Inc. |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "PUI Audio, Inc." |
| Output Type | Analog |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Sensitivity | -46dB ±4dB |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 60dB |
| Termination | Solder Pads |
| Direction | Noise Cancelling |
| Port Location | Top |
| Height (Max) | 0.146" (3.70mm) |
| Voltage - Rated | 2 V |
| Impedance | 2.2 kOhms |
| Current - Supply | 500 µA |
| Voltage Range | 2 V ~ 10 V |
| Frequency Range | 50 Hz ~ 16 kHz |
|
