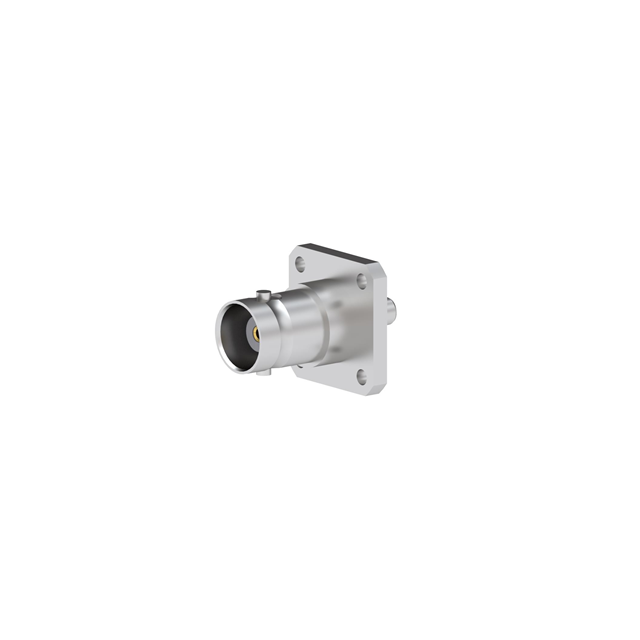

| Part number: | R191212000 |
| Description: | SMB MALE - BNC FEMALE SQUARE FLA |
| Manufacturer | Radiall USA, Inc. |
| Encapsulation | Box |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Radiall USA, Inc." |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Style | Straight |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | SMB Jack, Male Pin |
| Operating Temperature | -55°C ~ 155°C |
| Fastening Type | Bayonet Lock, Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Flange |
| Adapter Series | BNC to SMB |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Male |
| Conversion Type | Between Series |
| Body Material | Brass |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 4 GHz |
|
