| Part number: | EEF-UD0D391LR |

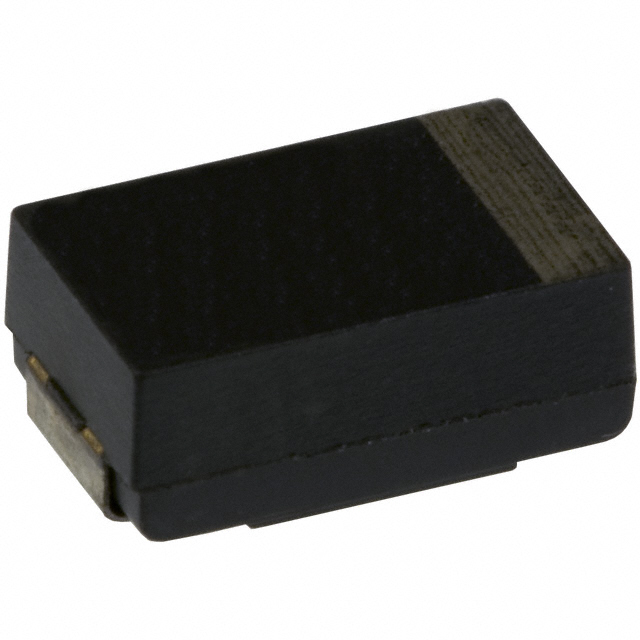

| Description: | CAP ALUM POLY 390UF 20% 2V SMD |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Capacitance | 390 µF |
| Voltage - Rated | 2 V |
|
