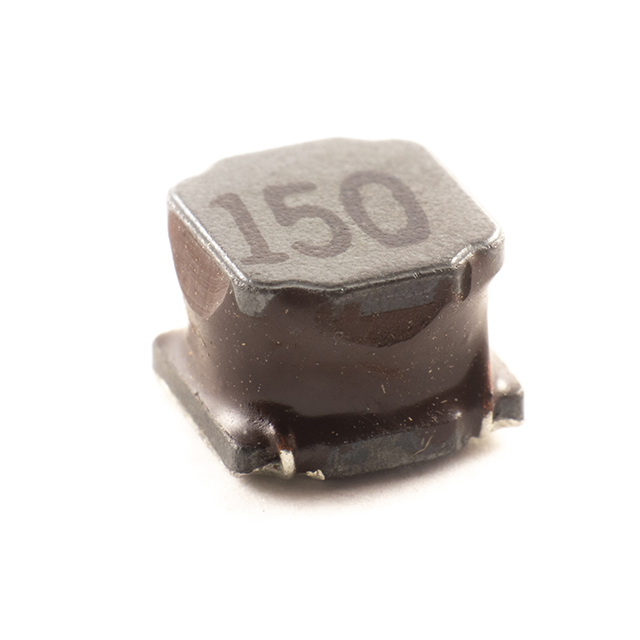

| Part number: | PCSVLR65-150M-RC |
| Description: | 15UH, SHIELDED HIGH CURRENT CHOK |
| Manufacturer | Allied Components International |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Allied Components International" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 80mOhm |
| Current - Saturation (Isat) | 3.4A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.185" (4.70mm) |
| Inductance | 15 µH |
| Current Rating (Amps) | 2.2 A |
|
