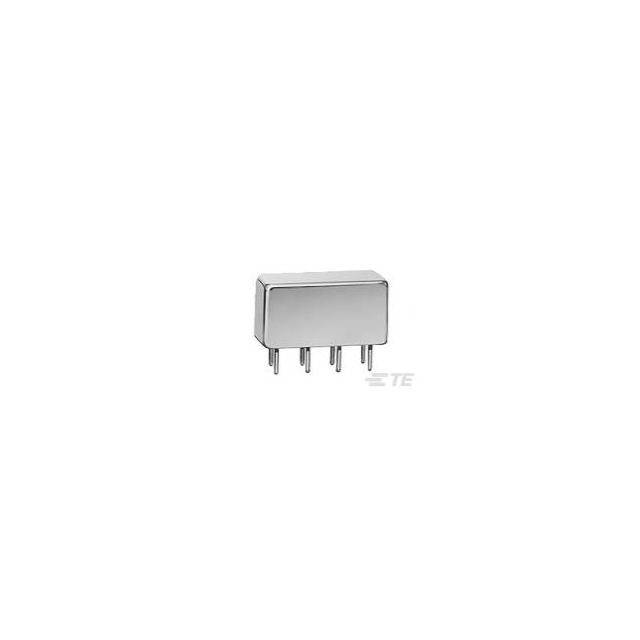

| Part number: | 3-1617028-7 |
| Description: | RELAY GEN PURPOSE DPDT 2A 26.5V |
| Manufacturer | TE Connectivity Aerospace Defense and Marine |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity Aerospace Defense and Marine" |
| Mounting Type | Chassis Mount |
| Coil Voltage | 26.5VDC |
| Operating Temperature | -65°C ~ 125°C |
| Termination Style | Solder Hook |
| Relay Type | General Purpose |
| Coil Current | 37.9 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Hermetically |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Must Release Voltage | 1.5 VDC |
| Must Operate Voltage | 18 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Coil Resistance | 700 Ohms |
|
