| Part number: | A751229 |

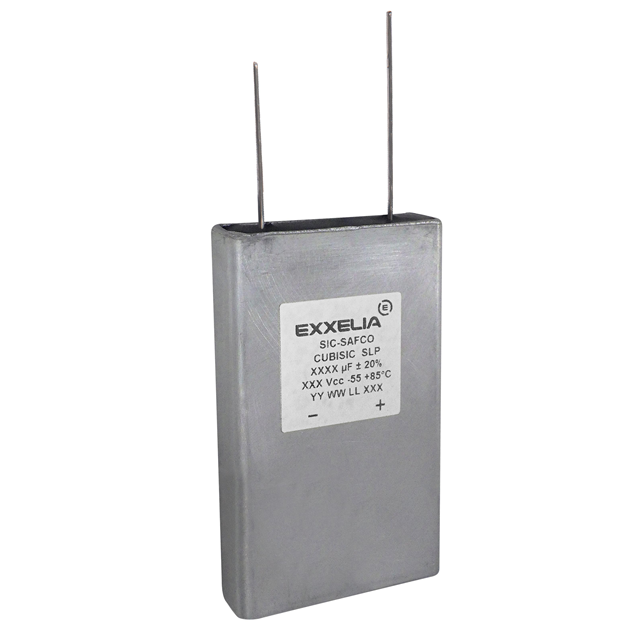

| Description: | CAP ALUM 200UF 20% 300V FLATPACK |
| Manufacturer | EXXELIA Sic Safco |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "EXXELIA Sic Safco" |
| Tolerance | ±20% |
| Package / Case | FlatPack |
| Size / Dimension | 1.496" L x 1.772" W (38.00mm x 45.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.000" (25.40mm) |
| ESR (Equivalent Series Resistance) | 280mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Capacitance | 200 µF |
| Voltage - Rated | 300 V |
| Ripple Current @ High Frequency | 3.1 A @ 100 Hz |
|
