| Part number: | MC14025BDG |
| Description: | IC GATE NOR 3CH 3-INP 14SOIC |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 55 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

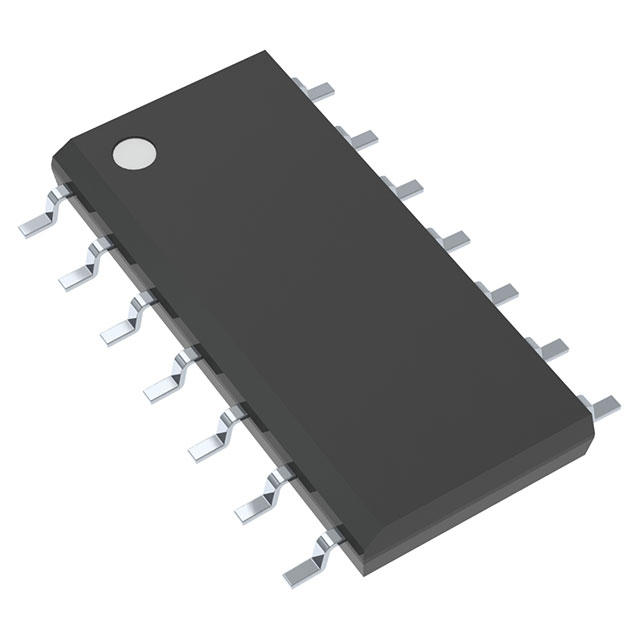

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NOR Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 18V |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Number of Inputs | 3 |
| Supplier Device Package | 14-SOIC |
| Input Logic Level - High | 3.5V ~ 11V |
| Input Logic Level - Low | 1.5V ~ 4V |
| Max Propagation Delay @ V, Max CL | 100ns @ 15V, 50pF |
| Number of Circuits | 3 |
| Current - Quiescent (Max) | 1 µA |
|
