| Part number: | MC74AC14DG |
| Description: | IC INVERT SCHMITT 6CH 6IN 14SOIC |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 55 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Features | Schmitt Trigger |

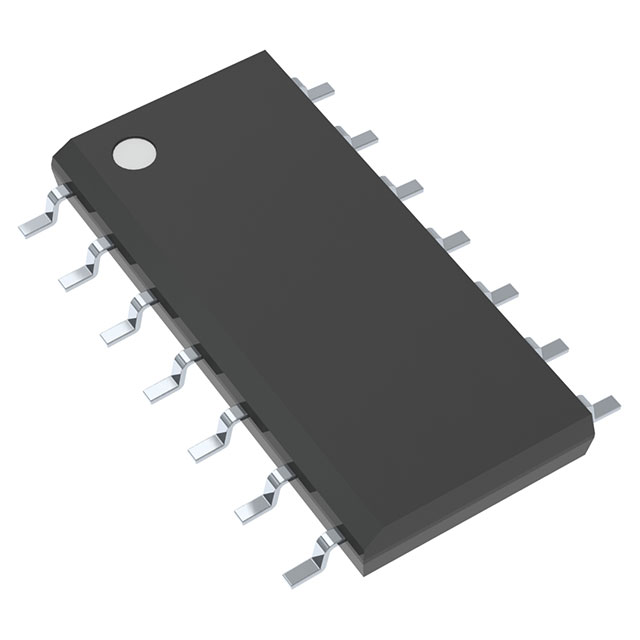

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | Inverter |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 24mA, 24mA |
| Number of Inputs | 6 |
| Supplier Device Package | 14-SOIC |
| Input Logic Level - High | 2.2V ~ 3.9V |
| Input Logic Level - Low | 0.5V ~ 1.1V |
| Max Propagation Delay @ V, Max CL | 10ns @ 5V, 50pF |
| Number of Circuits | 6 |
| Current - Quiescent (Max) | 4 µA |
|
