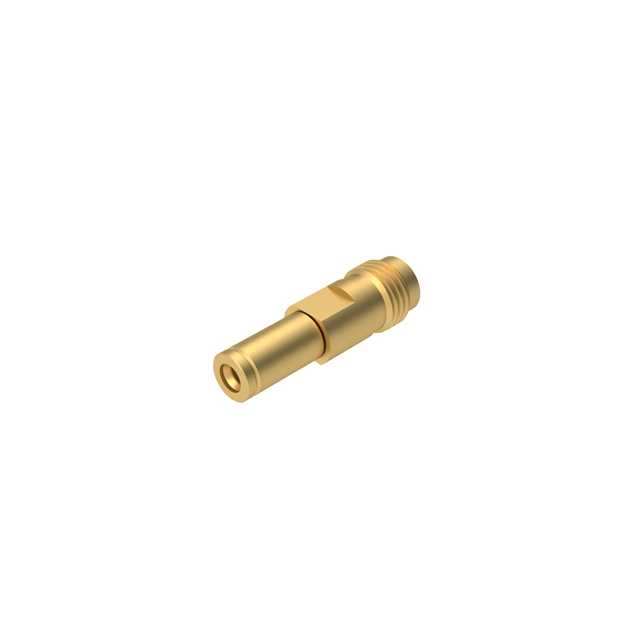

| Part number: | R191564000 |
| Description: | SMPM MALE - 2.4 MM FEMALE FULL D |
| Manufacturer | Radiall USA, Inc. |
| Encapsulation | Bulk |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Radiall USA, Inc." |
| Features | Full Detent |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | SMPM Plug, Male Pin |
| Convert To (Adapter End) | 2.4mm (APC-2.4, OS-50) Jack, Female Socket |
| Operating Temperature | -65°C ~ 165°C |
| Fastening Type | Snap-On, Threaded |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Adapter Series | SMPM to 2.4mm |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Male |
| Conversion Type | Between Series |
| Body Material | Beryllium Copper |
| Mating Cycles | 100 |
| Center Contact Material | Beryllium Copper |
| Body Finish | Gold |
| Center Contact Plating | Gold |
| Frequency - Max | 40 GHz |
|
