| Part number: | NGB8202NT4G |
| Description: | IGBT 440V 20A 150W D2PAK |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 800 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

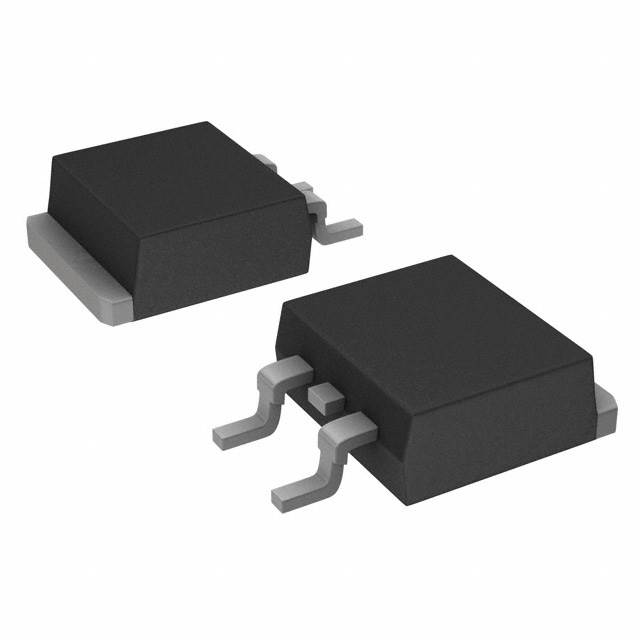

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Logic |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 4.5V, 20A |
| Supplier Device Package | D2PAK |
| Td (on/off) @ 25°C | -/5µs |
| Test Condition | 300V, 9A, 1kOhm, 5V |
| Current - Collector (Ic) (Max) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 440 V |
| Current - Collector Pulsed (Icm) | 50 A |
| Power - Max | 150 W |
|
