| Part number: | APT15GP60KG |
| Description: | IGBT 600V 56A 250W TO220 |
| Manufacturer | Microsemi Corporation |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Microsemi Corporation" |

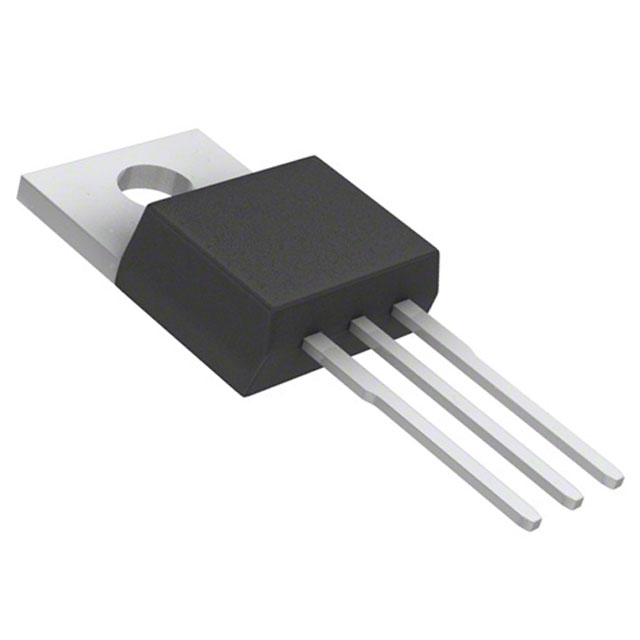

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 15A |
| Supplier Device Package | TO-220 [K] |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 8ns/29ns |
| Switching Energy | 130µJ (on), 121µJ (off) |
| Test Condition | 400V, 15A, 5Ohm, 15V |
| Gate Charge | 55 nC |
| Current - Collector (Ic) (Max) | 56 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 65 A |
| Power - Max | 250 W |
|
