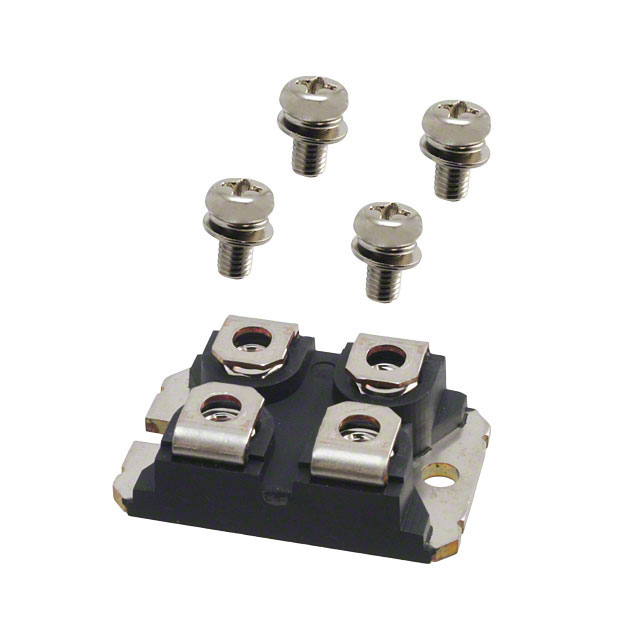

| Part number: | APT2X101D60J |
| Description: | DIODE MODULE GP 600V 100A ISOTOP |
| Manufacturer | Roving Networks (Microchip Technology) |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Roving Networks (Microchip Technology)" |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 180 ns |
| Technology | Standard |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 100A |
| Supplier Device Package | ISOTOP® |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 100 A |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V |
|
