| Part number: | APT30D20BCTG |
| Description: | DIODE ARRAY GP 200V 30A TO247 |
| Manufacturer | Roving Networks (Microchip Technology) |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Roving Networks (Microchip Technology)" |

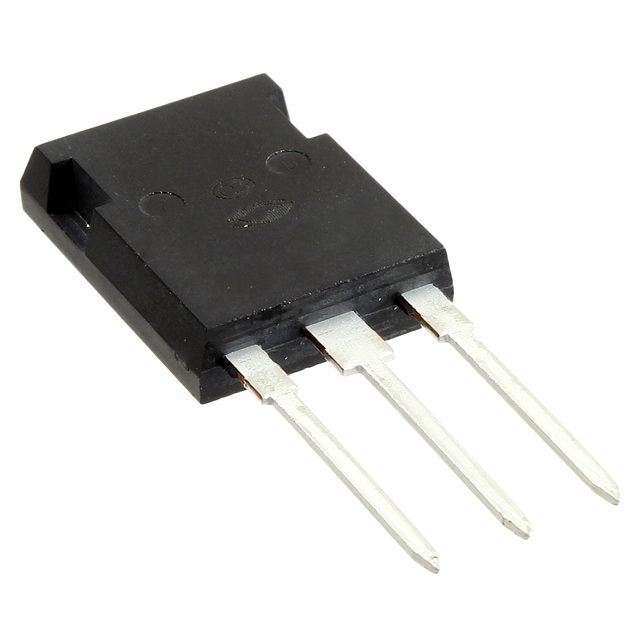

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 24 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Supplier Device Package | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 30 A |
| Current - Reverse Leakage @ Vr | 250 µA @ 200 V |
|
