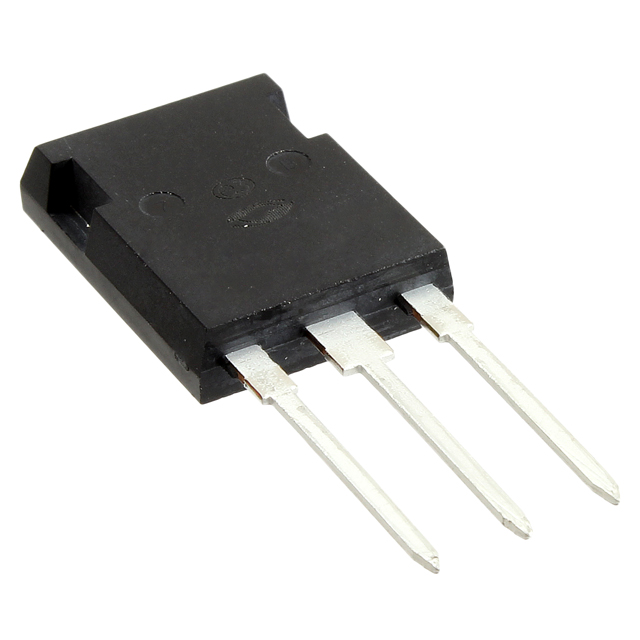

| Part number: | APT30D60BCAG |
| Description: | DIODE ARRAY GP 600V 27A TO247 |
| Manufacturer | Roving Networks (Microchip Technology) |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Roving Networks (Microchip Technology)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 85 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Current - Average Rectified (Io) (per Diode) | 27A |
| Supplier Device Package | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 30 A |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V |
|
