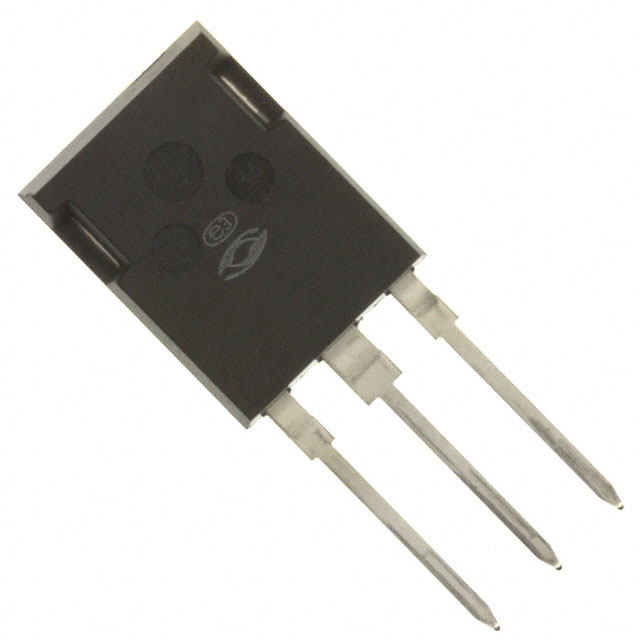

| Part number: | APT50GN120B2G |
| Description: | IGBT NPT FIELD STOP 1200V 134A |
| Manufacturer | Roving Networks (Microchip Technology) |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Roving Networks (Microchip Technology)" |
| Package / Case | TO-247-3 Variant |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A |
| IGBT Type | NPT, Trench Field Stop |
| Td (on/off) @ 25°C | 28ns/320ns |
| Switching Energy | 4495µJ (off) |
| Test Condition | 800V, 50A, 2.2Ohm, 15V |
| Gate Charge | 315 nC |
| Current - Collector (Ic) (Max) | 134 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 150 A |
| Power - Max | 543 W |
|
