| Part number: | AEA1213102M016R |

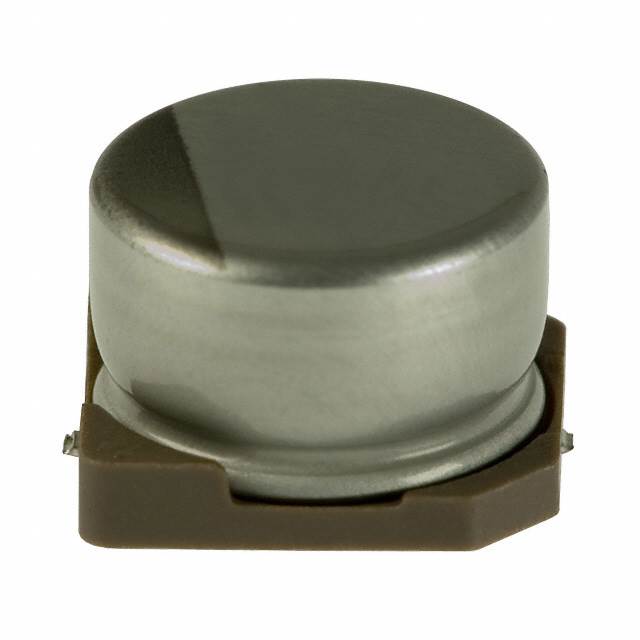

| Description: | CAP ALUM 1000UF 20% 16V SMD |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Capacitance | 1000 µF |
| Voltage - Rated | 16 V |
| Impedance | 60 mOhms |
| Ripple Current @ Low Frequency | 660 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
|
