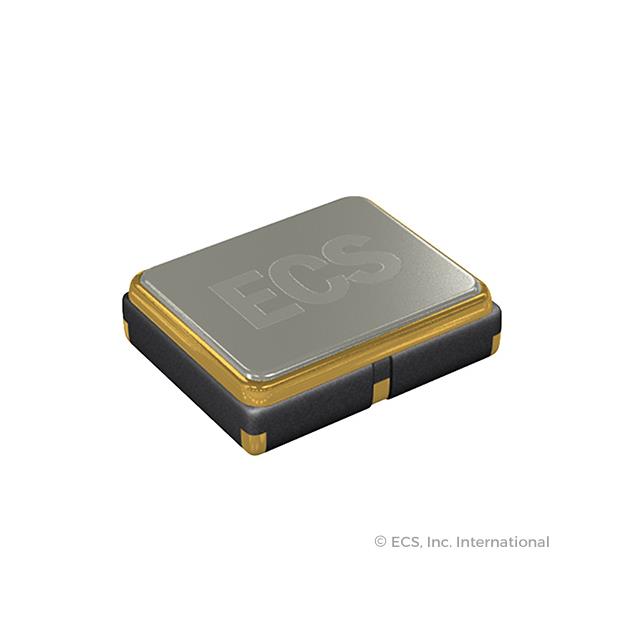

| Part number: | ECS-2016MV-250-CN-TR3 |
| Description: | OSC XO 25MHZ CMOS SMD |
| Manufacturer | ECS Inc. International |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ECS Inc. International" |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Output | HCMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±25ppm |
| Voltage - Supply | 1.8V ~ 3.3V |
| Current - Supply (Max) | 7mA |
| Current - Supply (Disable) (Max) | 10µA |
| Height - Seated (Max) | 0.033" (0.85mm) |
| Frequency | 25 MHz |
| Base Resonator | Crystal |
|
