| Part number: | 75869-309LF |

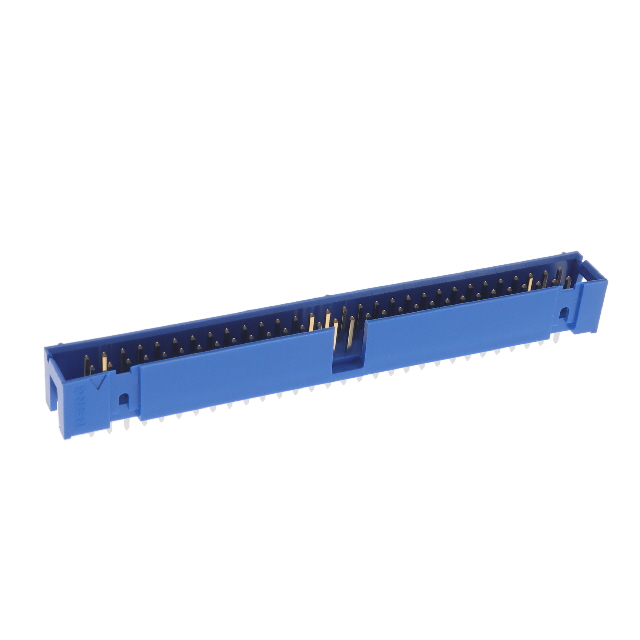

| Description: | CONN HEADER VERT 60POS 2.54MM |
| Manufacturer | Storage & Server IO (Amphenol Communications Solutions) |
| Encapsulation | Tube |
| Quantity | 6 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Storage & Server IO (Amphenol Communications Solutions)" |
| Features | Keying Slot |
| Connector Type | Header |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Blue |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Shape | Square |
| Contact Length - Post | 0.120" (3.05mm) |
| Insulation Height | 0.377" (9.57mm) |
| Shrouding | Shrouded - 4 Wall |
| Insulation Material | Thermoplastic, Glass Filled |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Mating | 0.236" (6.00mm) |
|
