| Part number: | EKWA421ELL101MU40S |

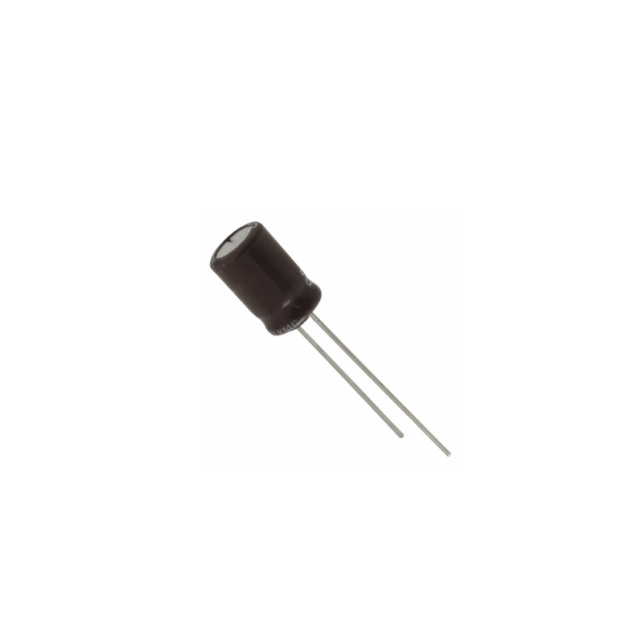

| Description: | CAP ALUM 100UF 20% 420V RAD TH |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.571" Dia (14.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Capacitance | 100 µF |
| Voltage - Rated | 420 V |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
|
