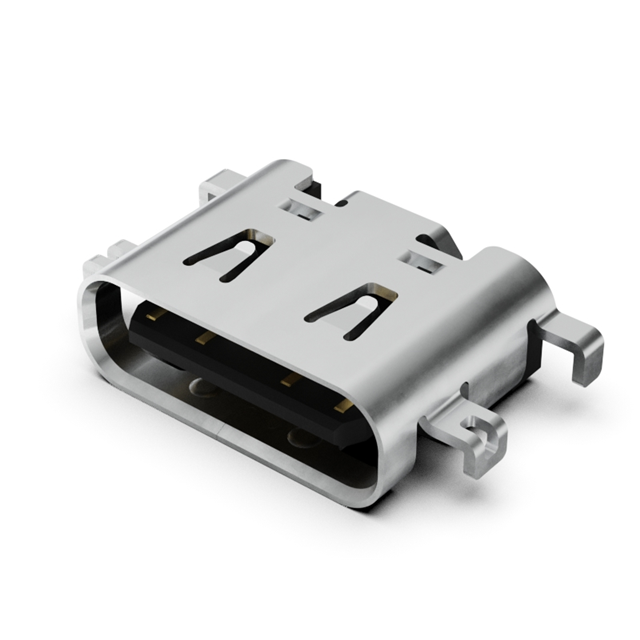

| Part number: | USB4510-03-1-A |
| Description: | USB C REC 16P 3U" MID MNT 1.6MM |
| Manufacturer | Global Connector Technology, Limited (GCT) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Global Connector Technology, Limited (GCT)" |
| Features | Solder Retention Tab |
| Voltage - Rated | 48VDC |
| Number of Contacts | 24 (16+8 Dummy) |
| Connector Type | USB-C (USB TYPE-C) |
| Gender | Receptacle |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -25°C ~ 85°C |
| Specifications | USB 2.0 |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal, Mid Mount |
| Mating Cycles | 10000 |
| Insulation Color | Black |
| Shell/Shielding Material | Steel (SUS304) |
| Number of Ports | 1 |
|
