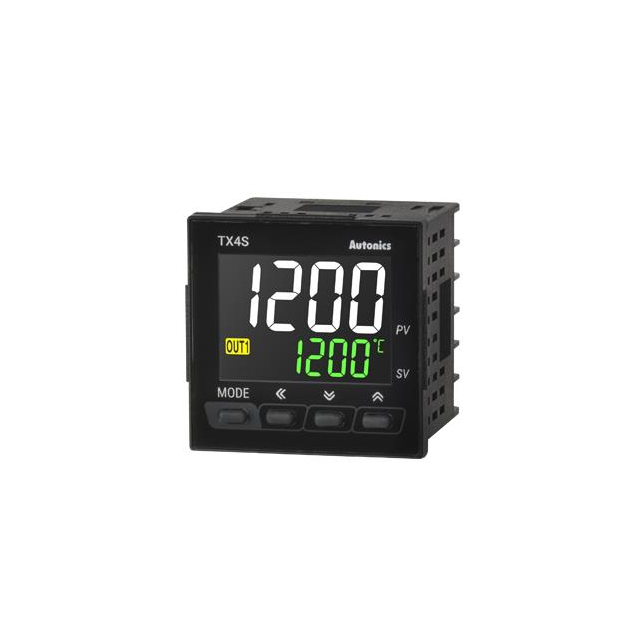

| Part number: | TX4S-24S |
| Description: | LCD PID TEMP CONTROL 100-240VAC |
| Manufacturer | Autonics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Autonics" |
| Features | Limit Function |
| Display Type | LED - Dual Color Characters |
| Output Type | Voltage (External SSR) |
| Mounting Type | Panel Mount |
| Type | Temperature Controller (RTD, Type J, K, L, R, S, T) |
| Operating Temperature | -10°C ~ 50°C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 100 ~ 240VAC |
| Ingress Protection | IP50 - Dust Protected |
| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Input Range | -100°C ~ 1700°C |
| Display Characters - Height | 0.551" (14.00mm), 0.299" (7.60mm) |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4 |
|
