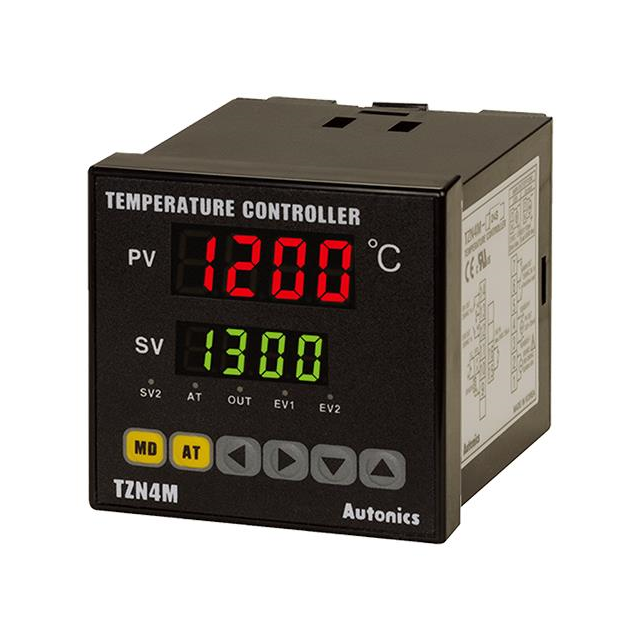

| Part number: | TZN4M-R4C |
| Description: | PID CONTROL CURRENT 100-240VAC |
| Manufacturer | Autonics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Autonics" |
| Features | Limit Function |
| Display Type | LED - Dual Color Characters |
| Mounting Type | Panel Mount |
| Type | Temperature Controller (RTD, Type E, J, K, L, N, R, S, T, W) |
| Operating Temperature | -10°C ~ 50°C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 100 ~ 240VAC |
| Panel Cutout Dimensions | Square - 68.00mm x 68.00mm |
| Input Range | -1999°C ~ 9999°C, 4 ~ 20mA, 0 ~ 10VDC |
| Display Characters - Height | 0.512" (13.00mm), 0.354" (9.00mm) |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4 |
|
