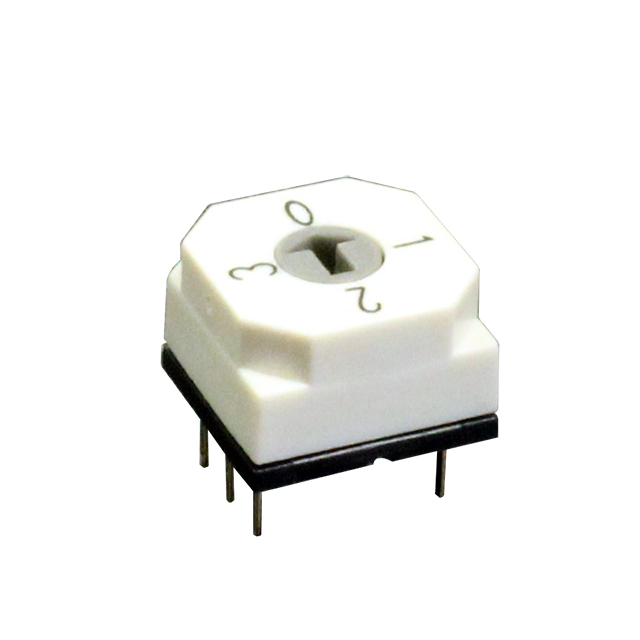

| Part number: | RD10AA4CTT |
| Description: | SW ROTARY DIP BCD COMP 0.15A 50V |
| Manufacturer | CIT Relay and Switch |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CIT Relay and Switch" |
| Contact Finish | Gold |
| Voltage Rating | 50VDC |
| Current Rating (Amps) | 150mA |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | BCD Complement |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Actuator Type | Rotary for Tool |
| Height Above Board | 0.256" (6.50mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Copper Alloy |
| Number of Positions | 4 |
|
