| Part number: | HN1B04FE-GR,LXHF |
| Description: | AUTO AEC-Q PNP + NPN TR VCEO:-50 |
| Manufacturer | Toshiba Electronic Devices and Storage Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Toshiba Electronic Devices and Storage Corporation" |

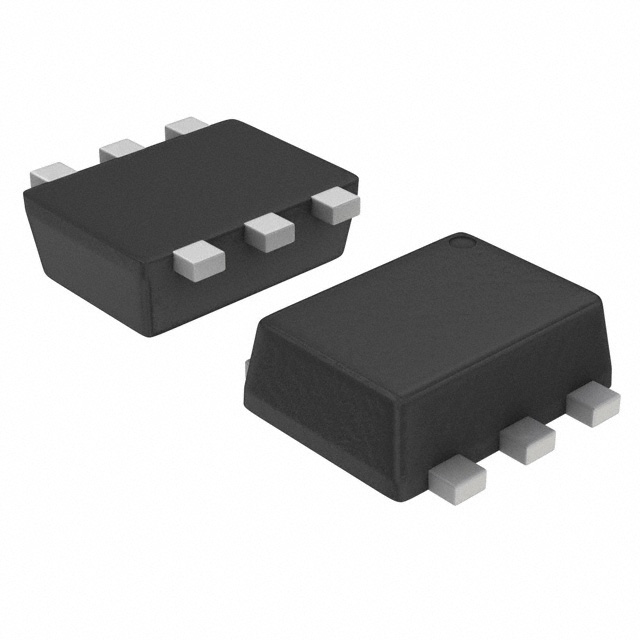

| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP |
| Operating Temperature | 150°C (TJ) |
| Power - Max | 100mW |
| Current - Collector (Ic) (Max) | 150mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA / 300mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 6V |
| Frequency - Transition | 80MHz |
| Supplier Device Package | ES6 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
|
