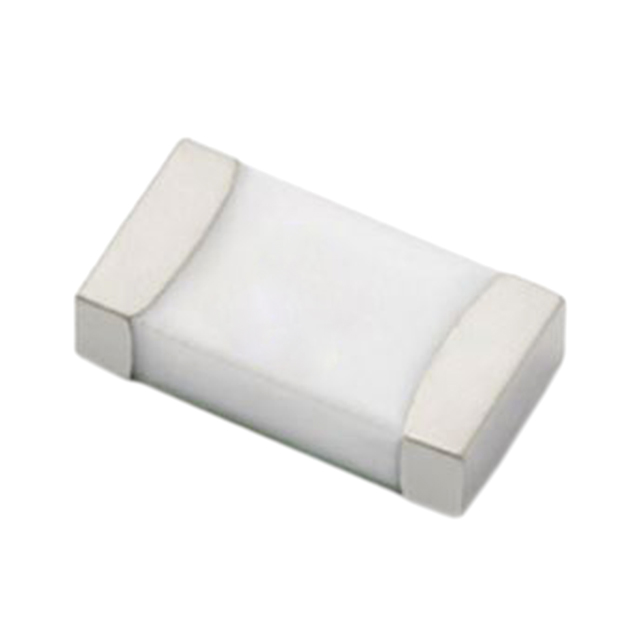

| Part number: | 0437.375WRA |
| Description: | FUSE BRD MT 375MA 125VAC/VDC |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| Response Time | Fast Blow |
| Approval Agency | AEC-Q200, CSA, cURus |
| DC Cold Resistance | 1.33 Ohms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 375 mA |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 0.01 |
|
