| Part number: | ITV4030L1222NR |

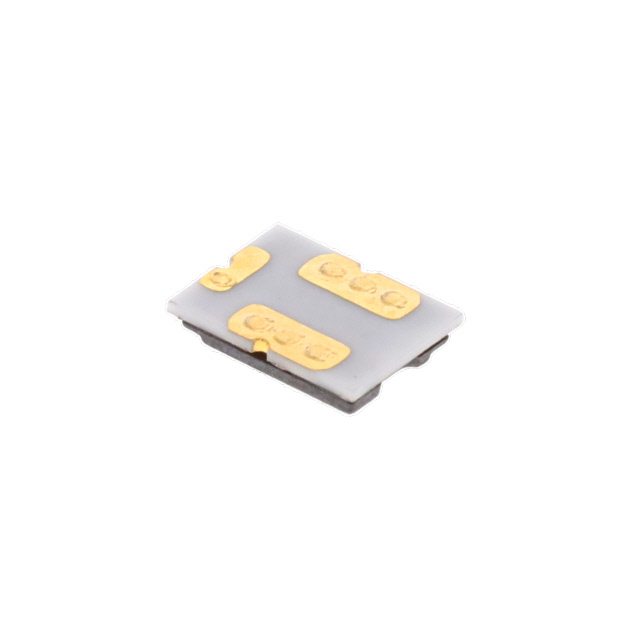

| Description: | FUSE BOARD MOUNT 22A 36VDC SMD |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | Nonstandard SMD |
| Size / Dimension | 0.160" L x 0.120" W x 0.035" H (4.00mm x 3.00mm x 0.90mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -10°C ~ 65°C |
| Response Time | Fast Blow |
| Approval Agency | cURus, TUV |
| DC Cold Resistance | 0.5 mOhms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 22 A |
| Voltage Rating - DC | 36 V |
|
