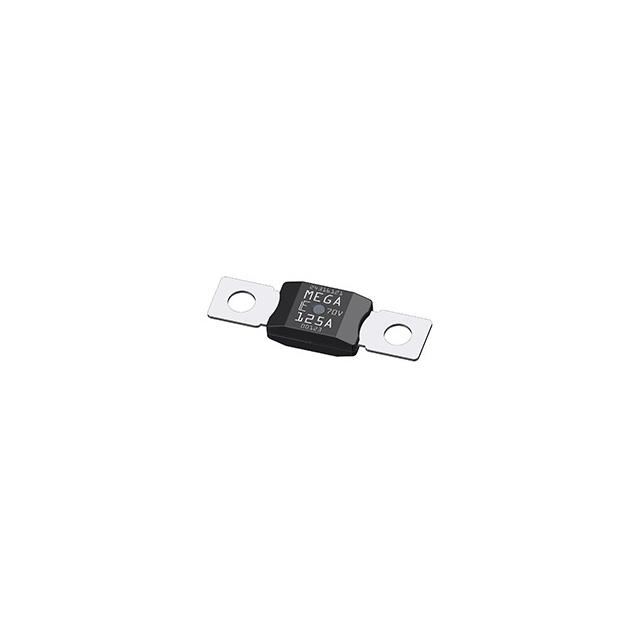

Products

TYPE	DESCRIPTION
Mfr	"Wickmann / Littelfuse"
Package / Case	Auto Link
Color	White
Size / Dimension	1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm)
Fuse Type	Automotive
Mounting Type	Bolt Mount
Operating Temperature	-40°C ~ 125°C
Response Time	Slow Blow
DC Cold Resistance	0.0028 Ohms
Breaking Capacity @ Rated Voltage	2.5kA
Current Rating (Amps)	175 A
Voltage Rating - DC	70 V
Melting I²t	79300
