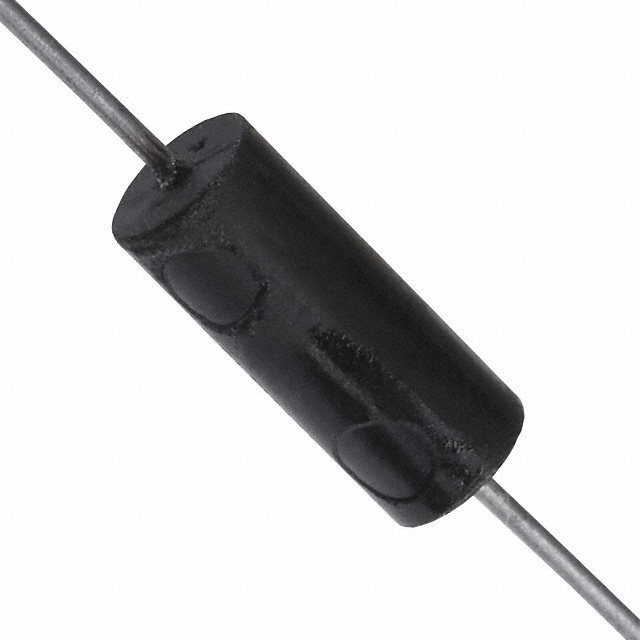

| Part number: | 1641-182K |
| Description: | FIXED IND 1.8UH 775MA 140MOHM TH |
| Manufacturer | API Delevan |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "API Delevan" |
| Tolerance | ±10% |
| Package / Case | Axial |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 105°C |
| DC Resistance (DCR) | 140mOhm Max |
| Q @ Freq | 44 @ 7.9MHz |
| Frequency - Self Resonant | 105MHz |
| Current - Saturation (Isat) | 775mA |
| Material - Core | Iron |
| Inductance Frequency - Test | 7.9 MHz |
| Inductance | 1.8 µH |
| Current Rating (Amps) | 775 mA |
|
