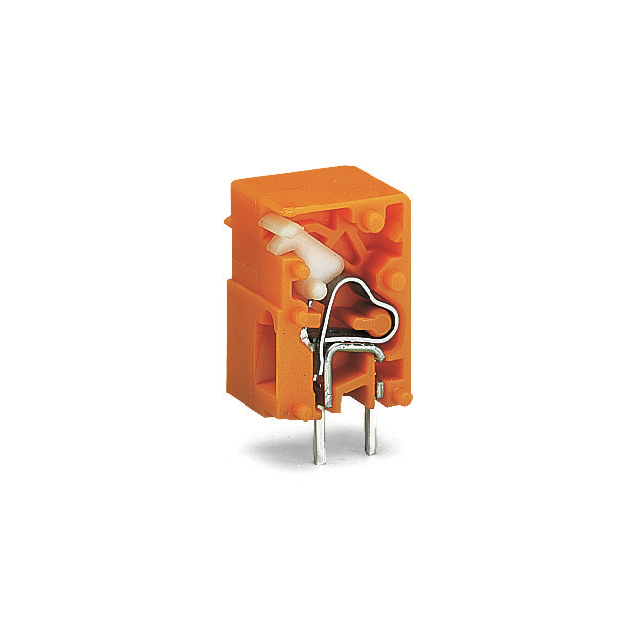

| Part number: | 741-913 |
| Description: | STACKABLE PCB TERMINAL BLOCK PUS |
| Manufacturer | WAGO |
| Encapsulation | Box |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WAGO" |
| Features | Push Button Actuated |
| Color | Orange |
| Mounting Type | Through Hole |
| Wire Gauge | 12-28 AWG |
| Operating Temperature | -60°C ~ 105°C |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 1 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Electrolytic Copper - Tin Plated |
| Clamp Material - Plating | Steel - Nickel Plated |
| Wire Termination | Screwless - Push Button Clamp |
| Current | 10 A |
| Number of Levels | 1 |
| Voltage | 300 V |
|
