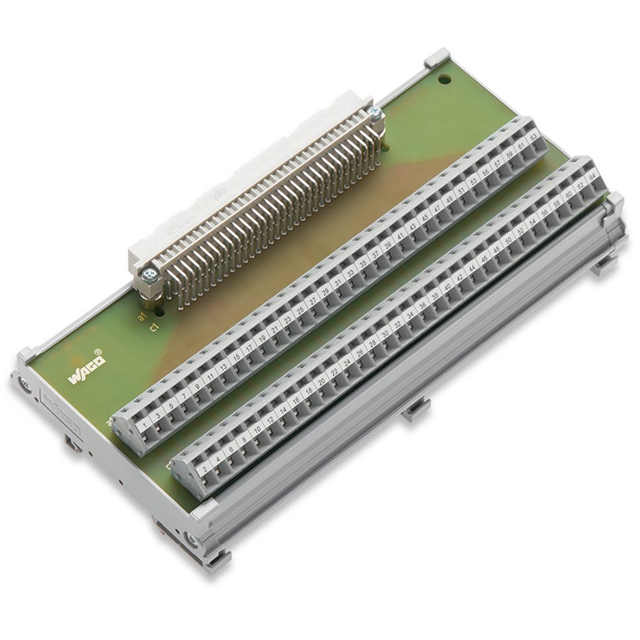

| Part number: | 289-527 |
| Description: | IM DIN 41612 |
| Manufacturer | WAGO |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WAGO" |
| Voltage - Rated | 125VDC |
| Wire Gauge | 12-28 AWG |
| Width | 6.732" (171.00mm) |
| Operating Temperature | -20°C ~ 50°C |
| Current Rating (Per Contact) | 1 A |
| Process Side Connection | Terminal Blocks - Screw Connection |
| Control Side Connection | Rectangular, Male - DIN 41612 Type C |
| Control Side Cable Retainer | Jackscrew Socket |
| Positions / Poles | 64 |
|
