| Part number: | 250-311 |

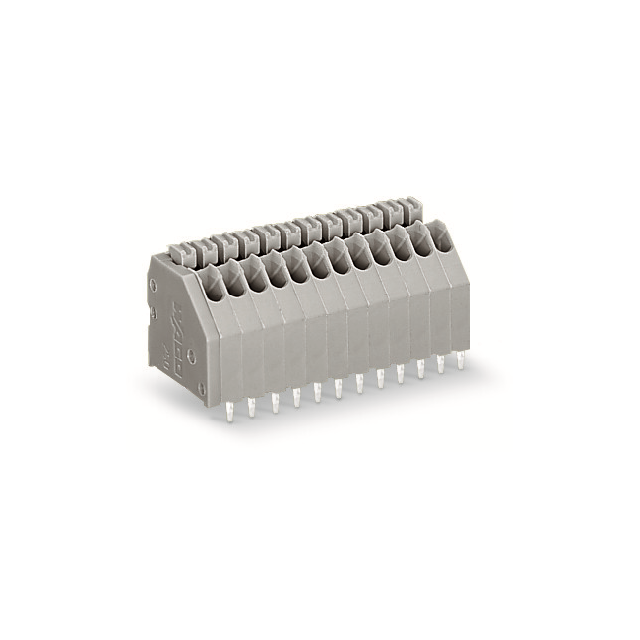

| Description: | PCB TERMINAL BLOCK; PUSH-BUTTON; |
| Manufacturer | WAGO |
| Encapsulation | Box |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WAGO" |
| Color | Gray |
| Mounting Type | Through Hole |
| Wire Gauge | 20-24 AWG |
| Pitch | 0.098" (2.50mm) |
| Operating Temperature | -60°C ~ 105°C |
| Mating Orientation | 45° (135°) Angle with Board |
| Positions Per Level | 11 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Electrolytic Copper - Tin Plated |
| Clamp Material - Plating | Copper Alloy |
| Wire Termination | Screwless - Push Button Clamp |
| Current | 5 A |
| Number of Levels | 1 |
| Voltage | 300 V |
|
