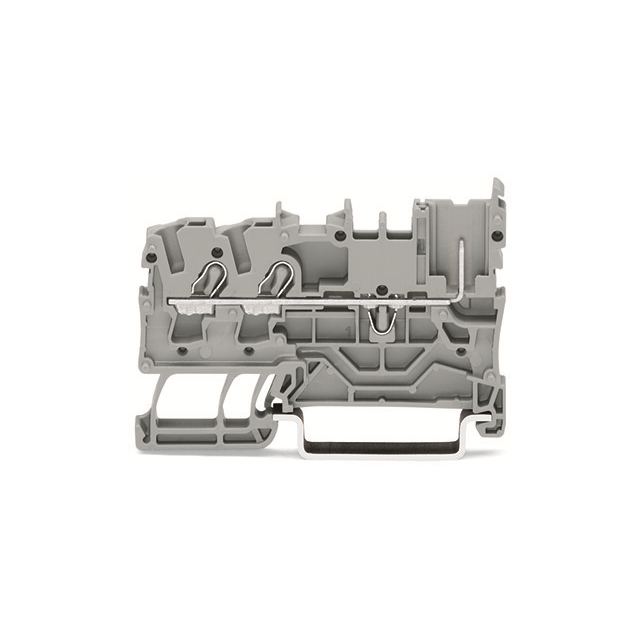

| Part number: | 2022-1302 |
| Description: | 2-CONDUCTOR/1-PIN CARRIER TERMIN |
| Manufacturer | WAGO |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WAGO" |
| Mounting Type | DIN Rail |
| Length | 2.330" (59.18mm) |
| Type | Plug Connection |
| Termination Style | Plug Receptacles, Push In, Spring |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 5.2mm |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm² | 0.25-4mm² |
| Height (Max) | 1.433" (36.40mm) |
| Housing Color | Orange |
| Stripping Length | 10mm ~ 12mm |
| Current - UL | 20 A |
| Current - IEC | 32 A |
| Voltage - IEC | 690 V |
| Voltage - UL | 600 V |
| Number of Positions | 2 |
|
