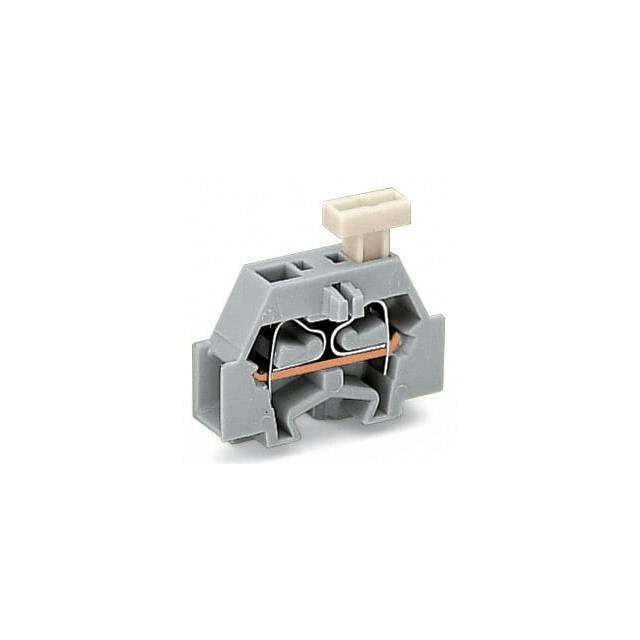

| Part number: | 261-316/331-000 |
| Description: | 2-CONDUCTOR TERMINAL BLOCK; ON O |
| Manufacturer | WAGO |
| Encapsulation | Box |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WAGO" |
| Features | Push Button Actuated |
| Mounting Type | Direct Mount |
| Length | 1.106" (28.09mm) |
| Type | Middle |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 6.0mm |
| Wire Gauge or Range - AWG | 14-28 AWG |
| Wire Gauge or Range - mm² | 0.08-2.5mm² |
| Height (Max) | 0.917" (23.30mm) |
| Housing Color | Orange |
| Stripping Length | 8mm ~ 9mm |
| Current - IEC | 24 A |
| Voltage - IEC | 500 V |
| Number of Positions | 2 |
|
