| Part number: | IJW120R070T1FKSA1 |
| Description: | JFET PWR FIELD EFFECT |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

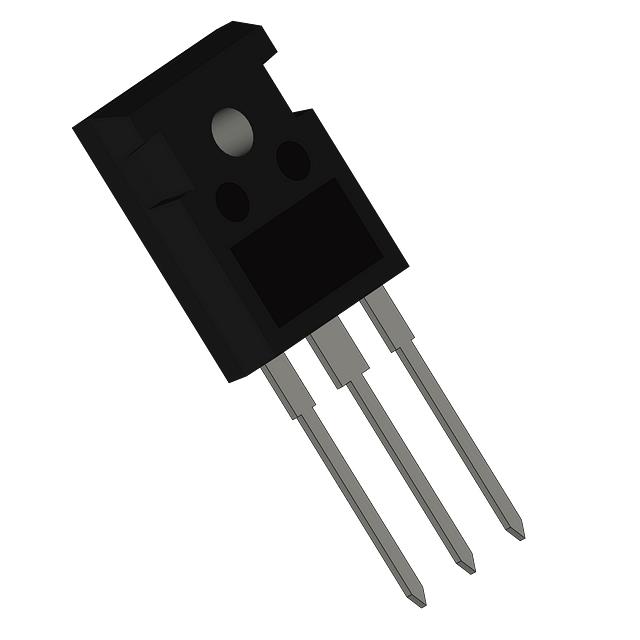

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 2000pF @ 19.5V (VGS) |
| Voltage - Breakdown (V(BR)GSS) | 1200 V |
| Current Drain (Id) - Max | 35 A |
| Supplier Device Package | PG-TO247-3 |
| Drain to Source Voltage (Vdss) | 1200 V |
| Power - Max | 238 W |
| Resistance - RDS(On) | 70 mOhms |
| Current - Drain (Idss) @ Vds (Vgs=0) | 3.3 µA @ 1200 V |
|
