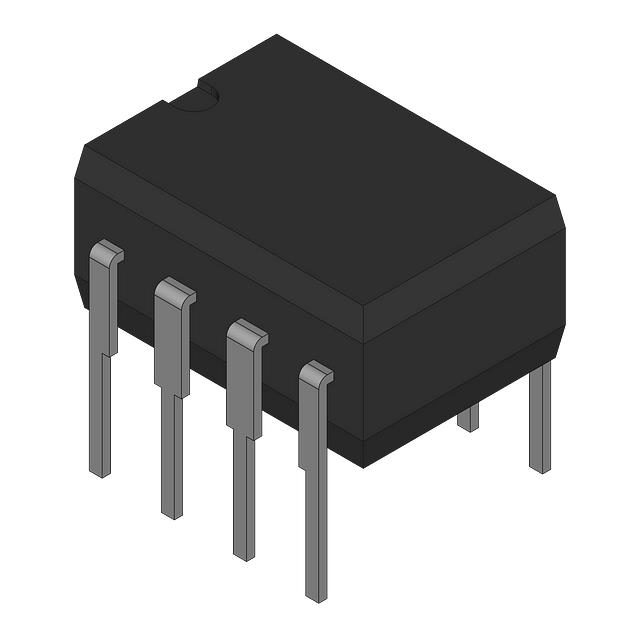

| Part number: | UC2842J |
| Description: | UC2842 CURRENT MODE PWM CONTROLL |
| Manufacturer | Unitrode |
| Encapsulation | Bulk |
| Quantity | 118 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Unitrode" |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | Up to 500kHz |
| Topology | Boost, Buck, Buck-Boost, Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 12V ~ 28V |
| Supplier Device Package | 8-CDIP |
| Synchronous Rectifier | No |
| Control Features | Frequency Control |
| Output Phases | 1 |
| Duty Cycle (Max) | 97% |
| Clock Sync | No |
| Number of Outputs | 1 |
|
